VKT series machines can be used for surface finishing of metal and nonmetal work pieces. These type of machines generally used for too long and large volume surfaced work pieces.
Linear Vibratory Surface Finishing Machines
VKT Series
VKT series machines can be used for surface finishing of metal and nonmetal work pieces. These type of machines generally used for too long and large volume surfaced work pieces.
pneumatic sound lid
divider with rail system
frequency control
dossage pump
magnetic valve

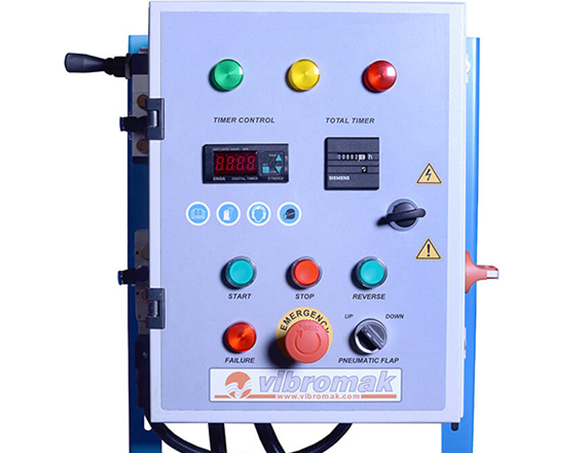

control panel base
rinsing pipe (different types)
Polishing
Radiusing
Oil Cleaning
Rust Cleaning
Antic Oxide
Descaling
Cleaning
Polisaj
Aluminium
Iron-Steel
Copper
Brass
Zamak
Powder Metal
Gold-Silver
Lead
Titanium
ABS & Polyester
Rubber
Acrylic
Bacalite
Stainless Steel
Furniture accessory parts
Sheet metal press parts
Injection molding, centrifugal, sand, gravity die casting parts
All kinds of parts machining
Fitting and valve parts
Fork, spoon, knife
Jewelry parts
Automotive parts industry
Acrylic teeth and other dental parts
Aviation and aircraft industry
Medical and surgical instruments
Costume jewelry and accessory parts
Tumbled marble and natural stone
| Type | VKT 15 |
VKT 30 |
VKT 50 |
VKT 100 |
VKT 200 |
VKT 300 |
VKT 500 |
VKT 800 |
VKT 1000 |
VKT 1600 |
VKT 2200 |
VKTO 450 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gross Volume | Lt | 16 | 32 | 49 | 96 | 204 | 305 | 502 | 792 | 1040 | 1596 | 2197 | 445 | ||
| PU Thickness | mm | 15-20 | 15-20 | 15-20 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 20-30 | 15-25 | ||
| Engine Power | Kw | 0,3 | 0,3 | 0,6 | 0,9 | 1,6 | 1,9 | 2,5 | 2 x 2,5 | 2 x 5 | 2 x 7 | 2 x 7 | 2,2 | ||
| Voltage | V/Hz | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | ||
| Operating Speed | rpm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | ||
| Weight | Kg | 70 | 100 | 150 | 240 | 390 | 540 | 800 | 1200 | 1800 | 2100 | 2600 | 640 | ||
| A | mm | 180 | 250 | 260 | 320 | 400 | 440 | 600 | 700 | 740 | 880 | 1000 | 500 | ||
| B | mm | 200 | 320 | 320 | 380 | 510 | 550 | 620 | 800 | 850 | 1000 | 1100 | 620 | ||
| C | mm | 500 | 590 | 740 | 900 | 1100 | 1340 | 1550 | 1600 | 1800 | 2000 | 2200 | 1310 | ||
| D | mm | 630 | 710 | 940 | 1100 | 1300 | 1560 | 1800 | 2930 | 3350 | 3550 | 3800 | 1520 | ||
| E | mm | 360 | 440 | 450 | 530 | 630 | 720 | 860 | 960 | 1000 | 1150 | 1250 | 860 | ||
| F | mm | -- | 625 | 800 | 970 | 1060 | 1100 | 1290 | 1350 | 1460 | 1620 | 1720 | 1250 | ||
| G | mm | 500 | 500 | 550 | 550 | 450 | 450 | 500 | 300 | 300 | 350 | 300 | 510 | ||
| H | mm | 800 | 880 | 900 | 1000 | 1000 | 1100 | 1180 | 1250 | 1350 | 1500 | 1550 | 1200 | ||
| J | mm | -- | 850 | 1120 | 1210 | 1220 | 1320 | 1400 | 1470 | 1600 | 1770 | 1820 | 1400 | ||
| K | mm | -- | 1300 | 1650 | 1870 | 1960 | 2080 | 2230 | 2425 | 2600 | 2880 | 3020 | 2300 | ||
